   Shop Pictures & TiltPlate Assembly

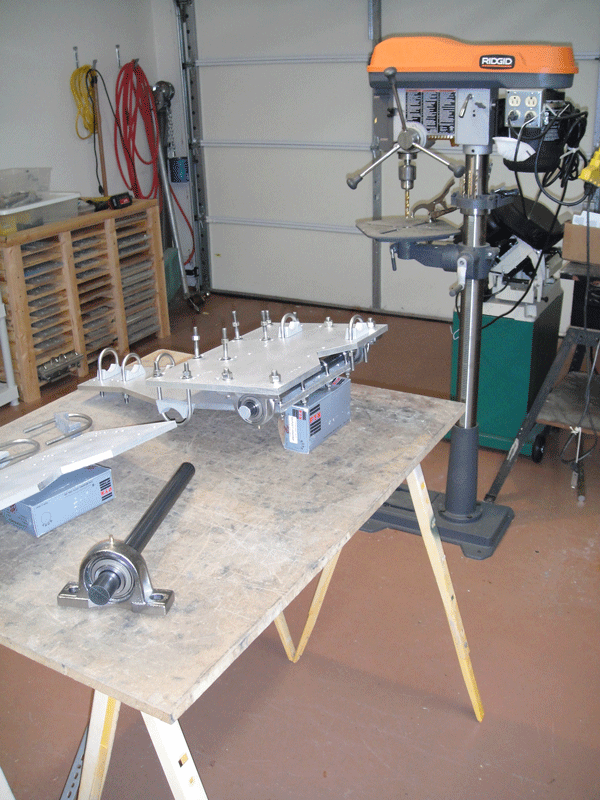

Partially assembled TiltPlates, KARLocks, and QuadLocks

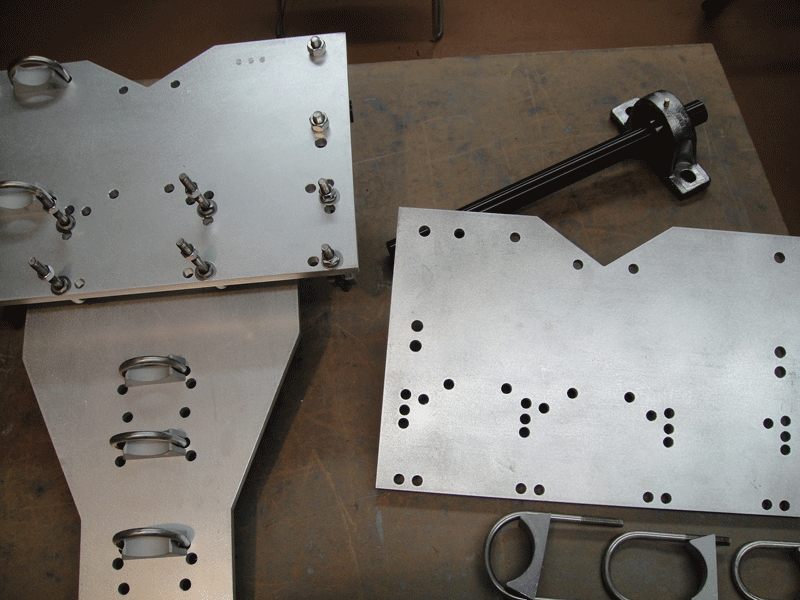

Stainless hardware, U-bolts, plates and tools




CNC is used for cutting and drilling the plates

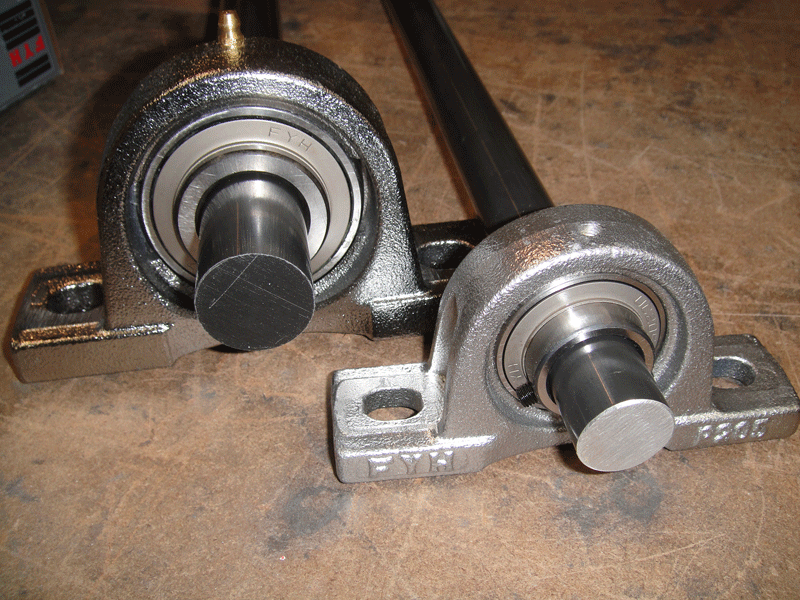

Monster model 1.25 inch bearing (left) and standard 1" bearings (right)





Boom plate supports round  boom sizes from 1-3 inches,
square 40 & 80 mm Optibeam booms,
 and several other special antenna arrangements (see FAQs)
