Modifications for M2 40M4LLDD

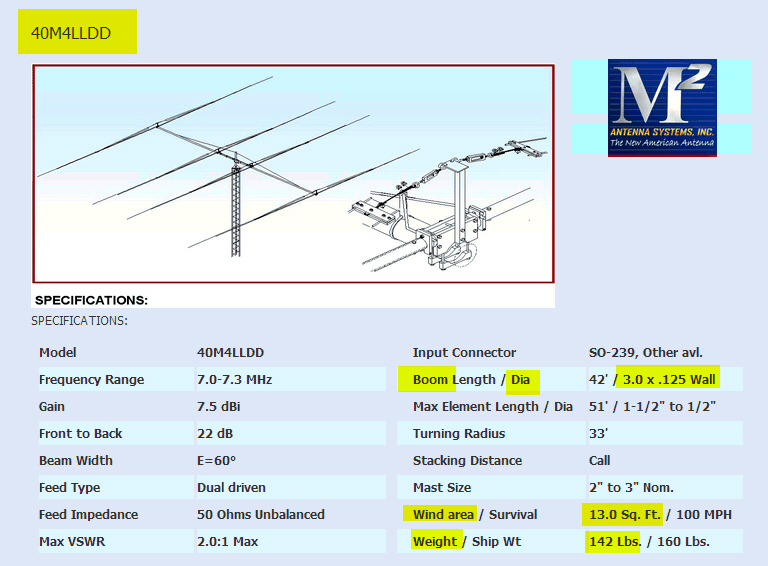

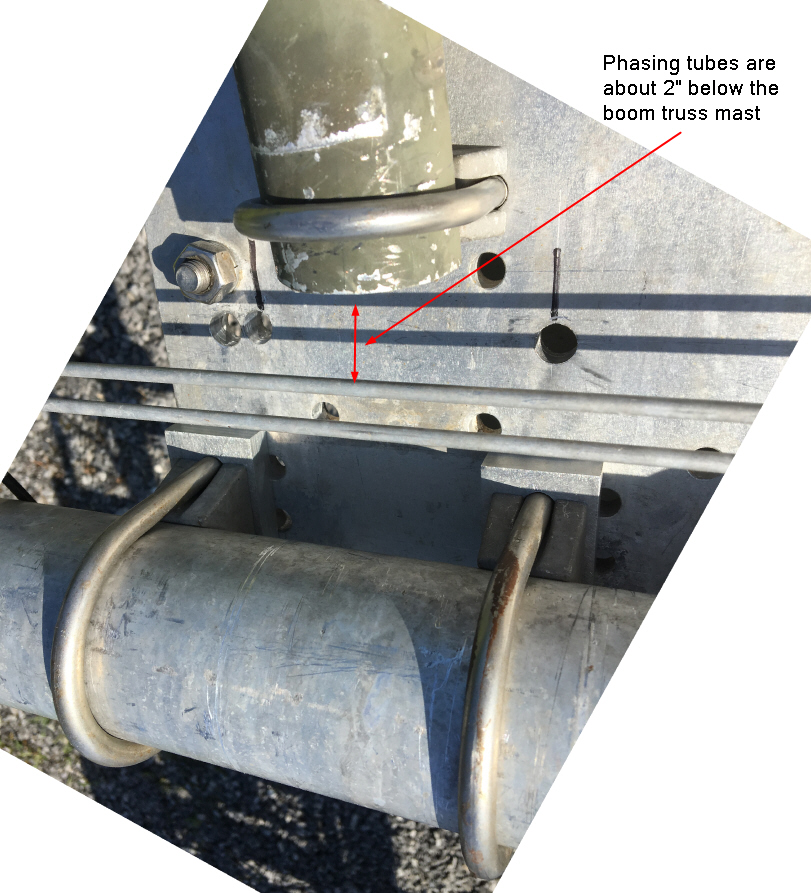

Loyd / WB4BMQ installed an M2 40M4LLDD antenna on his US Towers HDX 589 tower.  This antenna has a 3" boom and phasing lines which required a different setup to provide clearance for them and for mounting the optional KARLock.

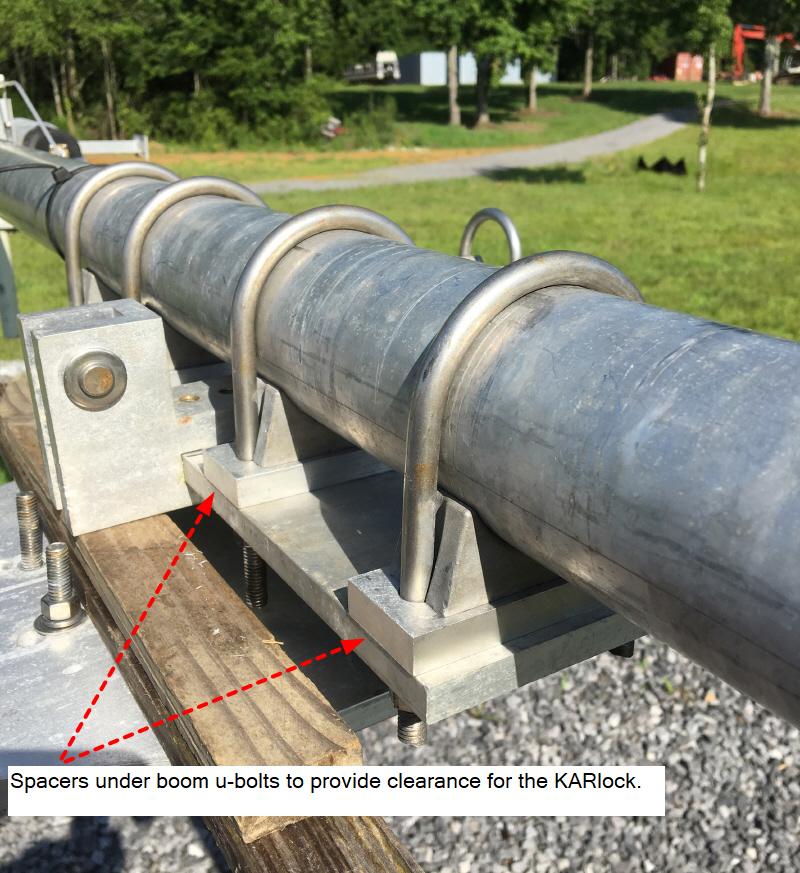

1 - The boom mounts on 1/2" spacers on the outside of the moveable plate.  This allows room for the optional KARLock

2 - Leveling bolts are used to keep the plates properly spaced

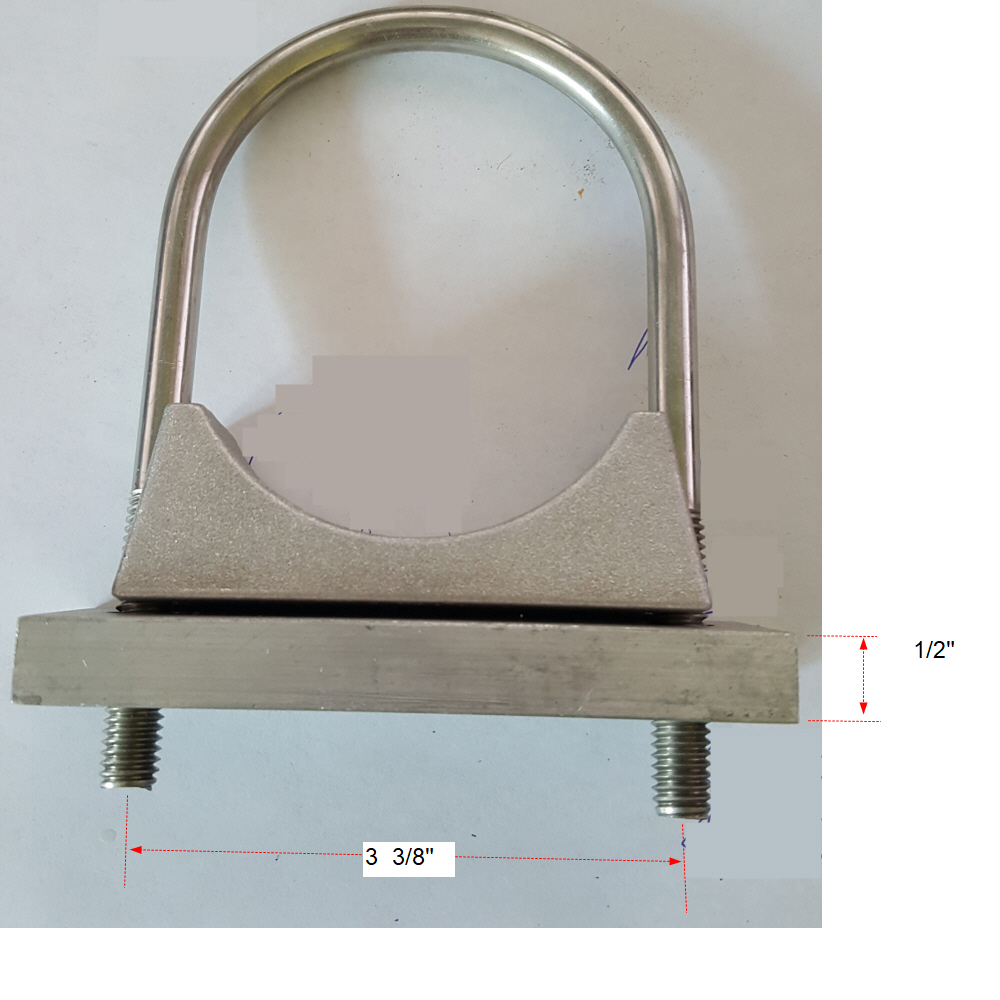

The spacers and bolts will be provided at no extra charge.

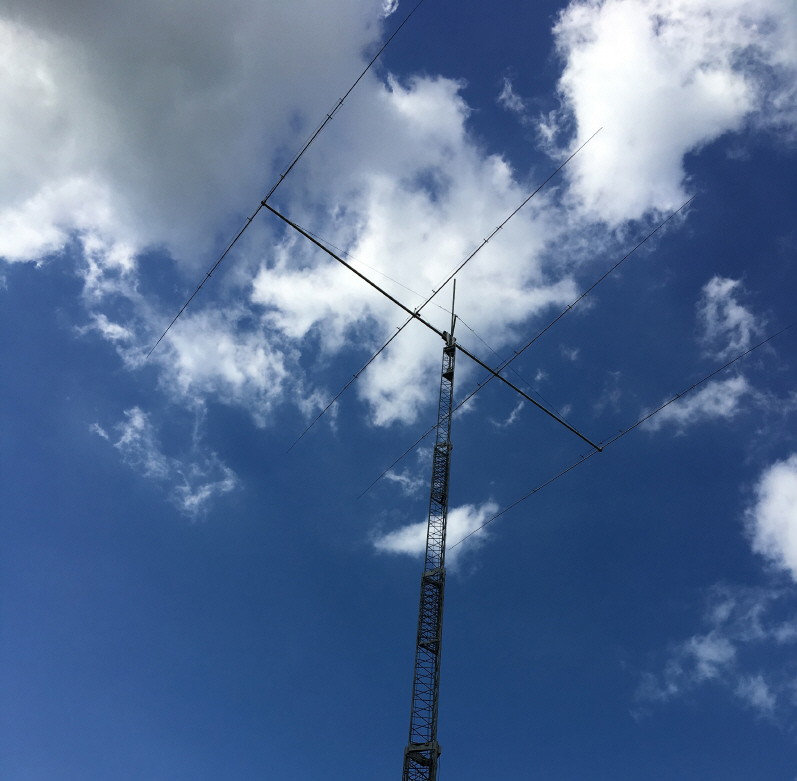

Al the tilt plate worked great with the M2 40M4LLDD
And the US Tower HDX 589

Loyd WB4BMQ
