Mini-TiltPlate Model Specifications

Mini-TiltPlate for smaller antennas.
Only requires 12 inches width on the boom for mounting.

• Mast and boom plates: Heavy duty 1/2 inch 6061 aluminum plates
• Bearings: 1 inch diameter, Extreme duty, corrosion resistant
• Boom plate shaft: 1 inch diameter, hardened precision anodized aluminum shaft
• Boom U-Bolts: (3) Heavy duty stainless steel by DX Engineering  (1" to 3" boom)
• Mast mount U-bolts: (3) Heavy duty stainless steel by DX Engineering are supplied.  The holes for a 4th u-bolt are drilled, however a 4th u-bolt is not supplied and not needed for this model.   (3 u-bolts is more than most antenna vendors provide on their stock boom / mast plates)
• Boom truss:   A boom truss is not supported on the stackable configuration and not normally needed on smaller antennas.   The compact hinge design does not permit a boom truss on this model.
• Weight: 25 pounds
• Added wind load: the Mini-TiltPlate adds 1.8 sq ft  minus the boom/mast plate you are replacing.  The net is typically +0.8 sq ft.
• Wind rating: 100 MPH
•  Maximum recommended antenna capacity: 10 sq ft wind load, 70 lbs
  • 2 el SteppIR
  • 3 el Steppir (will work on either the standard or mini model)
  • DB-11
  • Force 12 C-19xr, etc
• Available in either the "stackable" or "non-stackable" configuration.
• Supports the optional KARLock
• See picture below for dimensions

---

Standard Model Specifications

• Mast and boom plates: Heavy duty 1/2 inch 6061 aluminum plates
• Bearings: 1 inch diameter, Extreme duty, corrosion resistant
• Boom plate shaft: 1 inch diameter, hardened precision anodized aluminum shaft
• Boom U-Bolts: (4) Heavy duty stainless steel by DX Engineering (1" to 3" boom)
• Mast mount U-bolts: (4) Heavy duty stainless steel by DX Engineering
• Boom truss U-Bolts: (2) Heavy duty stainless steel by DX Engineering
• Weight: 30 pounds
• Added wind load: adds 2 sq ft  minus the boom/mast plate you are replacing.  The net is typically +1 sq ft.
• Wind rating: 100 MPH
•  Maximum recommended antenna capacity: 25 sq ft wind load, 125 lbs
  • ( if less than 20 sq ft, weight may be up to 150 lbs)
    • Tribander
    • 3el steppIR
    • 4el Steppir
    • Dreambeam 18
    • OptiBeam 40/30
    • etc
• Available in either the "stackable" or "non-stackable" configuration.
• Supports the optional KARLock
• See picture below for dimensions

Monster Model Specifications

•  Mast plate: (2 X 1/2 inch) for a full 1 inch thick 6061 aluminum plate.
• Boom plate: Single 1/2 inch 6061 aluminum plate.
• Bearings: 1 ¼ inch diameter, Extreme duty, corrosion resistant
• Boom plate shaft: 1 ¼ inch diameter, hardened precision anodized aluminum shaft
• Boom U-Bolts: (4) Heavy duty stainless steel by DX Engineering (1" to 3" boom)
• Mast mount U-bolts: (4) Heavy duty stainless steel by DX Engineering
• Boom truss U-Bolts: (2) Heavy duty stainless steel by DX Engineering
• Weight: 45 pounds
• Added wind load: adds 2 sq ft  minus the boom/mast plate you are replacing.  The net is typically +1 sq ft.
• Wind rating: 100 MPH
• Maximum recommended antenna capacity: 35 sq ft wind load, 250 lbs
  • MonstIR
  •  DreamBeam36,  42
  • large Yagi or LPDA
• Available in either the "stackable" or "non-stackable" configuration
• Supports the optional KARLock
• See picture below for dimensions

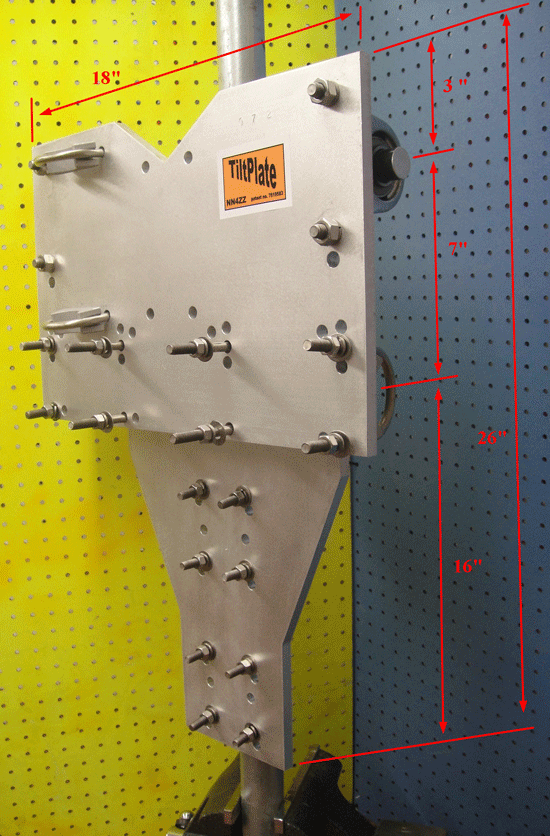

Dimensions for both the Standard and Monster models

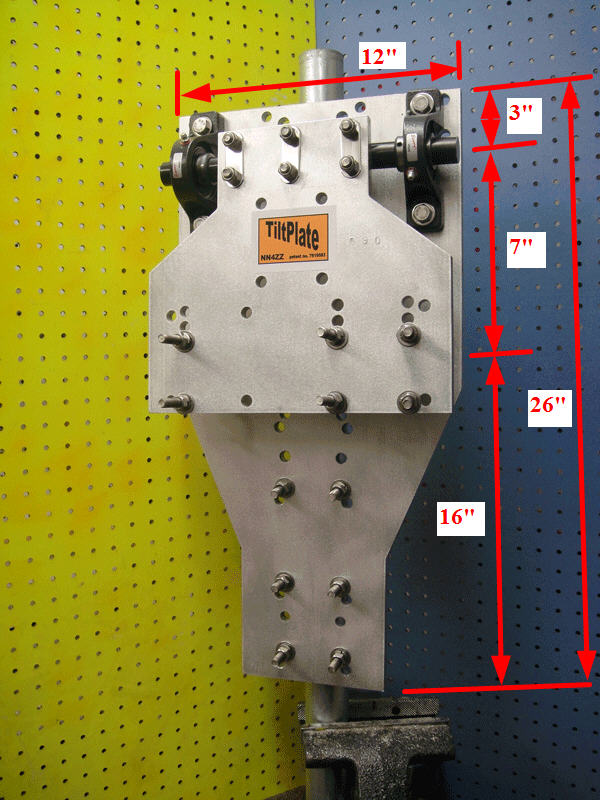

Dimensions for the MiniTiltPlate model
